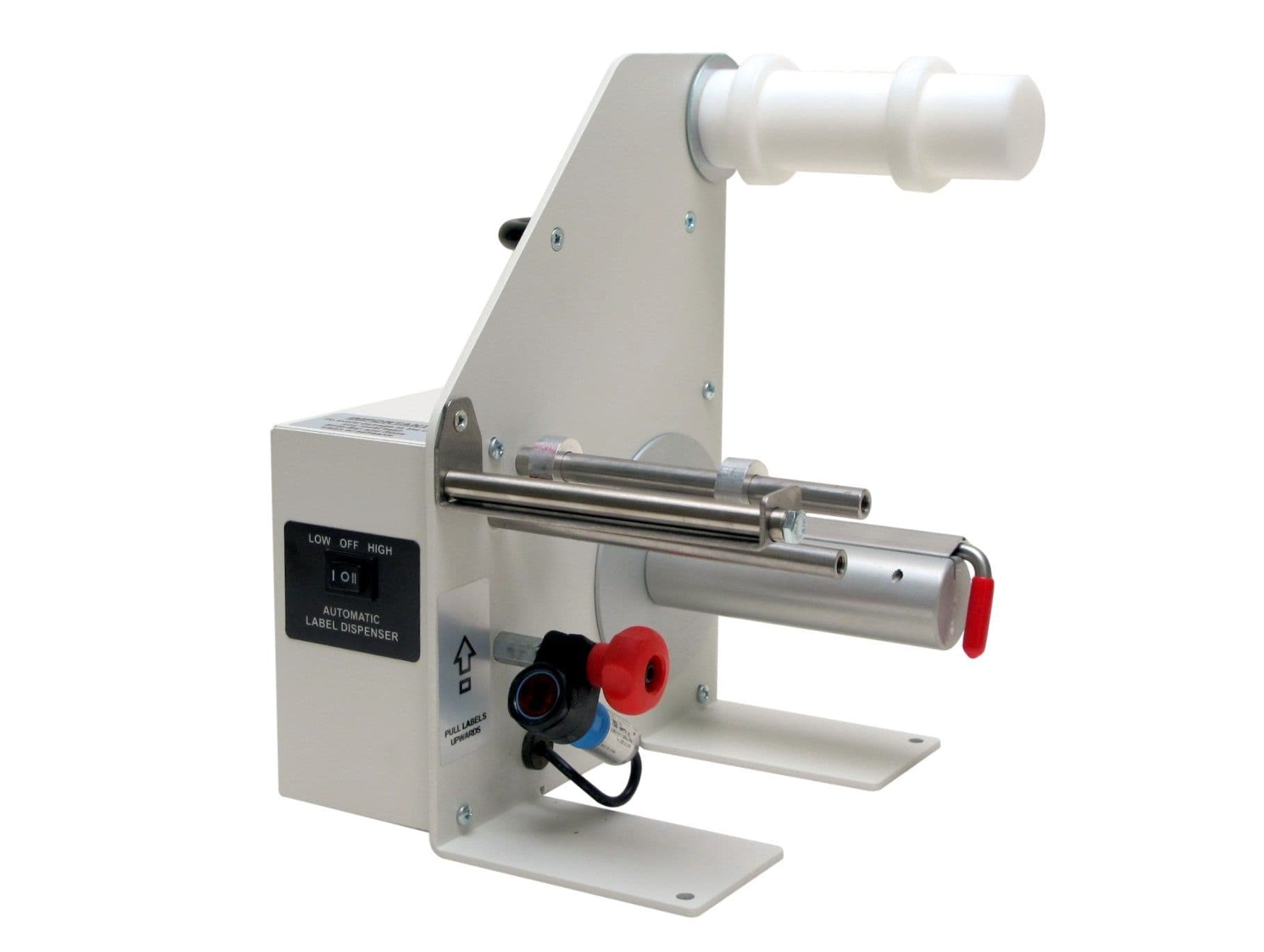

The LD-100-RS uses a peel and present design with the latest opto-electronic technology to dispense individual labels. The set-up is very easy. In less than 30 seconds, there is just one simple adjustment for label length.
A special reflective sensor sits below the label and reliably senses the leading edge of you label. As the operator picks up a label, the next one is automatically and instantly advanced.
The label dispensers are equipped with 38mm core holders that accept all cores from 40 to 76mm.
External roll diameter is 220mm (265mm with AWB option and 300 with LD-DE option).
Designed for all-day, every-day use, the LD-100-RS is backed by LABELMATE’s famous 3-YEAR PARTS and LABOUR LIMITED WARRANTY (1-Year on power supplies), assuring you trouble-free performance.
Features
- Handles labels up to 115mm wide
- Roll diameter capacity 220mm
- Label length from 6 to 150mm
- Min speed 11cm/sec
Customer reviews
-
Manufacturer:Labelmate
-
GTIN:identifier exists
-
Model:LD-100-RS
-
Max Roll Width:Up to 115 mm
-
Max Roll Diameter:220 mm
-
Speed:Minimum speed 110 mm/sec
-
Power Supply:Is required (see accessories)
-
Width:210 mm
-
Depth:200 mm
-
Height:270 mm
-
Availability:In Stock
-
Brand:Labelmate
-
Condition:New
-
Product Code:LMD001
-
Weight:8kg
